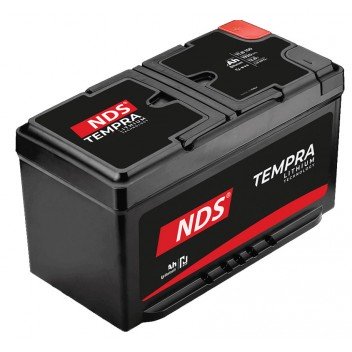

NDS Tempra Lithium Battery: 12V 120Ah - Freeze
C9444F
Description
Model Ref. TLB120F (120a version)
Heated Model
TEMPRA LITHIUM BATTERY is the new generation LiFePO4 top-notch battery, designed and manufactured entirely in Italy.
The TEMPRA battery has the best power-to-weight ratio on the market thanks to the new NDS HDP (high-density power) cells, a concentration of power in reduced space!
With capacities from 100a up to 150Ah in the dimensions of a classic L5 box size. The L5 box is a standard one which usually contains a maximum of 100Ah and which fits under the Fiat Ducato seat.
The safety systems of the new BMS also include optimal charge management, so you can connect your TEMPRA battery to any charger, even those designed for lead-acid batteries. The charge management and Smart Balance of the BMS ensure that the cells are always efficient and perform over time. The heated versions provide for use in extreme temperatures, down to a maximum of -30°C, so that the batteries can be used in all weather conditions. The N-BUS system makes the TEMPRA battery an integral part of the NDS energy ecosystem that can be controlled via Display Bus DTB and NDS Mobile app.
Specifications
| PRODUCT CODE: | C9444F |
|---|---|
| Manufacturer's product code: | TLB120F |
| MANUFACTURER: | DOMETIC NDS |
| Nominal Voltage: | 12.8 |
| Ah capacity at 5 hr rate: | 120 |
| Ah capacity: | 120 |
| Maximum Parallel Battery Connection: | 4 |
| Maximum Series Battery Connection: | N/A |
| Battery type: | Lithium |
| Built-in Heater: | YES |
| Cranking Amps: | Not applicable |
| Dimensions (L x W x H) - mm: | 341 x 176 x 190 |
| Terminal type: | M8 Terminals |
| Recommended maximum charging current - Amps: | 100 |
| Max charging current - Volts: | 14.4 |
| Recommended maximum continuous discharging current - Amps: | 120 |
| Max short period discharging current - Amps: | 155a (15 mins) |
| Maximum recommended inverter - Watts: | 1500w |
| Operating temperatures charging / discharging: | Charging -20 degrees to +45 degrees, Discharge -30 degrees to +60 degrees |
| Monitor / Display: | N-Bus Display available as optional extra |
| Expected Cycle Life @ 80% Depth of Discharge: | 3000 |
| Warranty period - covers defects in design and manufacture: | 5 Years - see warranty information sheet |
| Product Net KG: | 13.5 |
| weight: | 15.000 |
What's in the box
- 1 Unit
