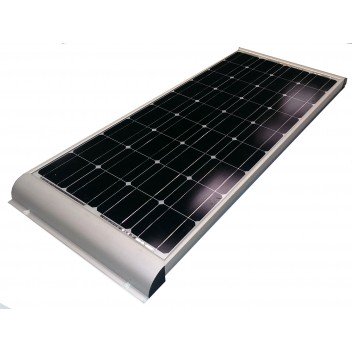

NDS 120W "Aero" Solar Panel
C5605
Description
A high quality solar panel with a maximum output of 120 Watts and built into a good looking, robust and aerodynamically efficient frame. As with all NDS solar panels, this one uses Grade “A” mono crystalline cells for maximum power production and reliability.
Although it’s possible to fix the panel to a vehicle’s roof using only an adhesive such as Dekasyl MS-2, we recommend using screws as well: just in case! When fitting to a vehicle's roof, all NDS Aero panels (with the exception of the 175W panel) need a single hole, 6-12mm cable entry box.
For more information on this product please click here
Specifications
| PRODUCT CODE: | C5605 |
|---|---|
| Manufacturer's product code: | PSM120WP |
| MANUFACTURER: | NDS |
| Nominal output - DC Volts: | 12 |
| Cell type: | Monocrystalline |
| Number of cells: | 36 |
| Open circuit voltage - V : | 23.75 |
| Maximum power output - Watts: | 120 |
| Current at peak power - Amps: | 6.12 |
| Voltage at peak power - Volts: | 19.62 |
| Dimensions L x W x H - mm: | 1520 x 530 x 60 |
| Regulator included: | No |
| Cable included - Metres: | 6M - single cable |
| Mounting method: | Integrated mounting brackets |
| OK to walk on: | No |
| Certification: | IEC61215, IEC61730 safety standards compliant and ISO9001/ISO14000 Certification |
| Note: | Monocrystalline silicon cells protected by a Tedlar Sheet and highly transparent tempered and textured glass |
| Product Net KG: | 10.50 |
| Warranty - years: | 2 |
| weight: | 12.000 |
What's in the box
- 120w solar panel with 6m cable attached
- 1 x warranty booklet
