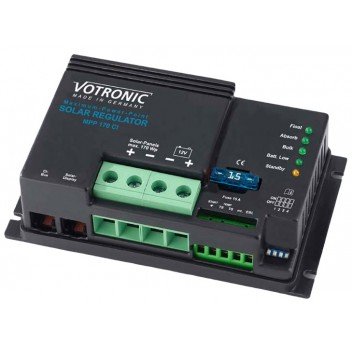

Votronic 1712 Solar Controller MPP 170 CI
C55991
Description
Article No: 1712
The Votronic 1712 Solar Controller MPP 170 CI is a high-performance solar charge controller designed for use in off-grid solar power systems. This device is specifically engineered to regulate the charging of your batteries from your solar panels to maximize their performance and extend their lifespan.
The MPPT (Maximum Power Point Tracking) technology of this controller ensures that your solar panels are always operating at their maximum efficiency by continuously tracking the panel's output and adjusting the charging voltage and current accordingly. This ensures that you get the most out of your solar panels even in unfavourable conditions.
The Votronic 1712 Solar Controller MPP 170 CI is designed to be easy to install and use, with an intuitive user interface that allows you to easily monitor and control your solar power system. The controller is also built to withstand harsh environmental conditions, making it suitable for use in a range of different applications, including motorhomes, boats, caravans, and remote homes.
For solar panels with:
- Maximum Watt rating of 170W
- Maximum Current rating of 10 Amps
- Maximum open circuit voltage of 60V
For more information on the Votronic 1712 Solar Controller MPP 170 CI, click here.
This regulator is fitted with an EBL connection to check which EBL model is compatible with the regulator. Please refer to the chart, which can be found by clicking here
PLEASE NOTE: WHEN USING THIS REGULATOR WITH LITHIUM BATTERIES YOU WILL REQUIRE A C0325 - Votronic 2001 Temperature-Sensor 825 (for M8 bolts)
More Information
Specifications
PRODUCT CODE: | C55991 |
---|---|
Article No.: | 1712 |
MANUFACTURER: | Votronic |
Regulator type: | MPPT |
Suitable for battery types: | Acid/Lead-Acid, Gel, AGM, LiFePO4 |
For use with solar panels with a maximum power rating (Watts) of: | 170 |
Max. solar panel voltage - Volts: | 60 |
Connection to solar display / monitor: | YES |
Dimensions L x W x H - mm: | 131 x 77 x 40 |
Protection Fuse Rating Amp: | 15 |
Product Net KG: | 0.225 |
Warranty - years: | 5 |
weight: | 0.300 |
What's in the box
- 1 x Unit
- 1 x set of instructions
