C85106

Article No. 3078

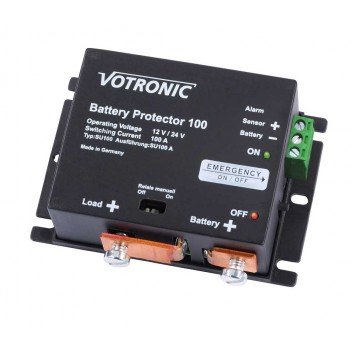

Model No. Battery Protector 100

The bistable power relay on the Battery Protector 100 is designed for switching currents of 100 A and can be overloaded for a short time up to 180 A. Here too, the bistable relay ensures extremely low power consumption. The device is suitable for 12 V to 24 V on-board networks, works fully automatically and has a special intelligent automatic switching threshold. It detects the changing load on the battery and ensures optimum use of the battery capacity. The device can also be operated with 3 fixed, selectable switch-off thresholds. The higher switch-on thresholds enable emergency vehicles to be started with just one battery circuit in accordance with DIN EN 1789. The Battery Protector 100 also has a visual and acoustic pre-alarm, a separate warning switching output and is equipped with solid battery screw connections. The contact cover is included in the scope of delivery. 2 LEDs show the operating status of the device.

Product Features

• High switching currents, extremely low consumption
• Automatic reset function
• EMERGENCY-ON function, also remote controllable
• Can be used as a remote-controlled main switch
• Intelligent automatic switching threshold
• Also for starter batteries according to DIN EN 1789
• For 12 V or 24 V battery voltage
