The VOTRONIC battery monitors are connected between the supply battery and the consumer and are suitable for all types and brands of lead batteries (acid, gel, AGM). On the one hand, they protect the on-board battery from dangerous deep discharge and on the other hand, the consumer and the equipment from overvoltage. It can also be used as a remote-controlled battery main switch from an external switch. The devices can be switched on again at any time using an EMERGENCY-ON function. A bistable power relay ensures extremely low self-consumption (DIN EN 13976). Solid screw terminals round off the profile.

Product features

• Switching current 40 A, can be overloaded for a short time up to 60 A, switching status display visible from the outside
• EMERGENCY-ON function via switch on the device, also remotely controlled via external switch
• Automatic reset as soon as the battery voltage returns to normal range (charge)
• Separate sensor cable and switching thresholds with hysteresis and timer functions for trouble-free operation
• Bistable power relay, very low power consumption, less than 3 mA (according to EN 13976)
• No self-consumption when switched off via external switch, e.g. remote control as battery main switch
• Solid screw terminals for battery and load cable cross-sections up to 10 mm²
• The “Motor” version with higher shutdown thresholds maintains the starting capability of emergency vehicles with only one battery circuit in accordance with DIN EN 1789

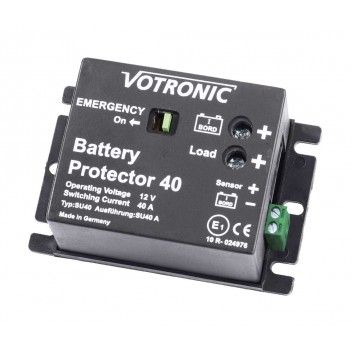

Model No. Battery Protector 40

Article No. 3075
