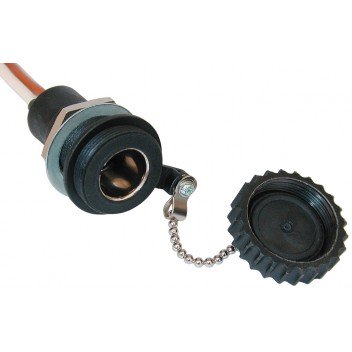

ProCar 52005001 W-proof 16A P. Mounted Din Socket + Cap
C0216
Description
IP 67 rated waterproof DIN socket designed for panel-mounting and with a dust & waterproof screw-on cap.
Required port for installation 18.4mm
Cable length 300mm
White cable is positive feed
Brown cable is negative feed
Specifications
| PRODUCT CODE: | C0216 |
|---|---|
| Manufacturer's product code: | 52005001 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524100291 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | Pre cabled, fastened by hexagonal nut |
| PORT FOR INSTALLATION mm: | 18.4mm |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | 0.3 |
| Current rating Amps: | 16 |
| Internal Fuse: | 16a |
| Product Notes: | IP67 Rating waterproof screw cap, DIN EN ISO 4165 |
| Dimensions L x W x H - mm: | N/A |
| Installation Depth in MM: | 40 |
| Product Net KG: | 0.050 |
| Warranty - years: | 2 |
| weight: | 0.050 |
What's in the box
- 1 unit
