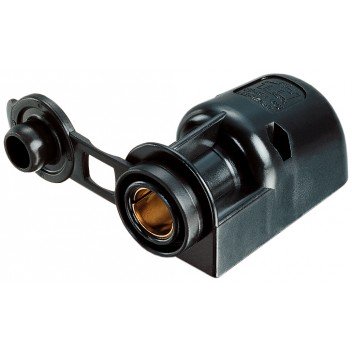

ProCar 57608003 Surface-mounted Din Socket + Cap
C0205
Description
Standard socket designed for surface mounting and with a dust & splash-proof cap.
Specifications
| PRODUCT CODE: | C0205 |
|---|---|
| Manufacturer's product code: | 57608003 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524100352 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm flat terminals |
| PORT FOR INSTALLATION mm: | N/A |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 16 |
| Internal Fuse: | N/A |
| Product Notes: | DIN EN ISO 4165 & TUV CERTIFIED |
| Dimensions L x W x H - mm: | 60 x 30 x 30 |
| Installation Depth in MM: | 30 |
| Product Net KG: | 0.040 |
| Warranty - years: | 2 |
| weight: | 0.040 |
What's in the box
- 1 x surface mount din socket with cap
- 1 x set of screws
