ProCar 67608000 Surface-Mounted Din Socket (Loose min. 50)
C0207
Description

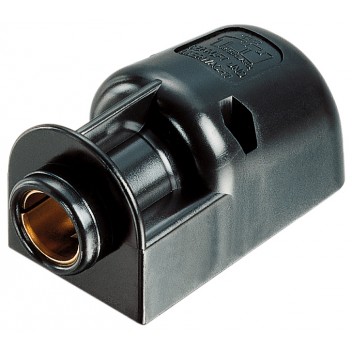

DIN socket designed for surface-mounting. 12/24V surface mounted Din socket. Sturdy plastic housing for loads up to 16A Blade connectors 6.3mm x 0.8mm TUV tested
PLEASE NOTE THIS ITEM COMES UNPACKAGED AND WITHOUT INSTRUCTIONS, THERE IS A MINIMUM ORDER QUANTITY OF 50 UNITS FOR THIS PRODUCT
Specifications
| PRODUCT CODE: | C0207 |
|---|---|
| Manufacturer's product code: | 57608001 |
| MANUFACTURER: | Pro Car Gmbh |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm flat terminals |
| PORT FOR INSTALLATION mm: | N/A |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 16 |
| Internal Fuse: | N/A |
| Product Notes: | DIN EN ISO 4165 & TUV CERTIFIED, Minimum order quantity of 50 applies to this product |
| Dimensions L x W x H - mm: | N/A |
| Installation Depth in MM: | N/A |
| Product Net KG: | 0.040 |
| Warranty - years: | 2 |
| weight: | 0.040 |
What's in the box
- 1 x surface mount standard din socket
- 1 x set of screws
