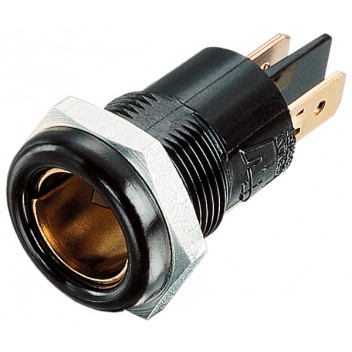

ProCar 67607000 Panel-Mounted Din Socket (Loose min. 50)
C0206
Description
DIN socket designed for panel mounting. 12/24V built-in Standard socket suitable for standard and Procar universal plugs for operating lights and auxiliary devices in cars, trucks, mobile homes etc. Sturdy plastic housing for loads up to 16A TUV Tested Plug type connections 6.3mm x 0.8mm
Port for installation: 18mm
PLEASE NOTE: THIS ITEM COMES UNPACKAGED AND WITHOUT INSTRUCTIONS, THERE IS A MINIMUM ORDER QUANTITY OF 50 UNITS
Specifications
| PRODUCT CODE: | C0206 |
|---|---|
| Manufacturer's product code: | 57607001 |
| MANUFACTURER: | Pro Car Gmbh |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm Flat Terminals |
| PORT FOR INSTALLATION mm: | 18mm |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 16 |
| Internal Fuse: | N/A |
| Product Notes: | DIN EN ISO 4165 & TUV CERTIFIED, Minimum order quantity of 50 applies to this product |
| Dimensions L x W x H - mm: | N/A |
| Installation Depth in MM: | 40 |
| Product Net KG: | 0.050 |
| Warranty - years: | 2 |
| weight: | 0.050 |
What's in the box
- 1 unit
