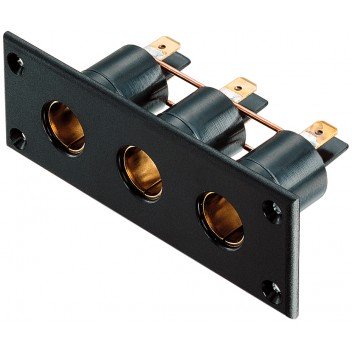

ProCar 57612003 Din Sockets - Panel Of 3
C0208
Description
Three DIN socket outlets designed for panel mounting Maximum 16A total load.
Specifications
| PRODUCT CODE: | C0208 |
|---|---|
| Manufacturer's product code: | 57612003 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524100369 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm flat terminals |
| PORT FOR INSTALLATION mm: | N/A |
| Input power connection: | Wired |
| Output power connection: | 3 x Din sockets |
| Approximate cable length metres: | N/A |
| Current rating Amps: | max load across the three sockets 16 |
| Internal Fuse: | N/A |
| Product Notes: | DIN EN 150 4165 |
| Dimensions L x W x H - mm: | 70 X 20 X 40 |
| Installation Depth in MM: | 40 |
| Product Net KG: | 0.050 |
| Warranty - years: | 2 |
| weight: | 0.050 |
What's in the box
- 1 x triple built in socket
- 1 x set of screws
