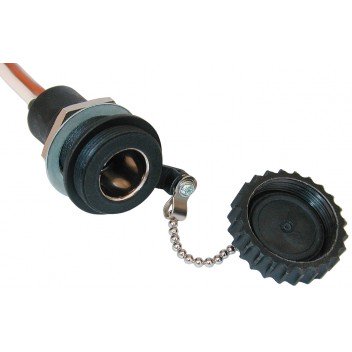

ProCar 52005000 W-prf 16A P. Mntd Din Sckt + Cap
C0216L
Description
Article No. 52005000
For more information on this product, please refer to part number C0216
PLEASE NOTE THIS ITEM COMES UNPACKAGED AND WITHOUT INSTRUCTIONS, THERE IS A MINIMUM ORDER QUANTITY OF 50 UNITS FOR THIS PRODUCT
Specifications
| PRODUCT CODE: | C0216L |
|---|---|
| Manufacturer's product code: | 52005000 |
| MANUFACTURER: | Pro Car Gmbh |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | Pre cabled, fastened by hexagonal nut |
| PORT FOR INSTALLATION mm: | 18.4mm |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | 0.3 |
| Current rating Amps: | 16 |
| Internal Fuse: | 16a |
| Product Notes: | IP67 Rating waterproof screw cap, DIN EN ISO 4165, supplied loose no packaging, Minimum order quantity of 50 applies to this product |
| Dimensions L x W x H - mm: | N/A |
| Installation Depth in MM: | 40 |
| Product Net KG: | 0.060 |
| Warranty - years: | 2 |
| weight: | 0.036 |
What's in the box
- 1 unit
