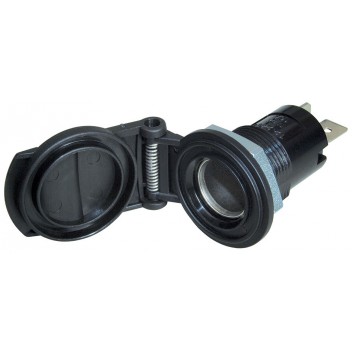

ProCar 67617100 16A P. Mounted Din Socket + Cap
C0214
Description
DIN socket designed for panel mounting and with a dust & splash-proof cap.
16A / 12/24V max TÜV certified and monitored, with contacts according to DIN EN ISO 4165.
Port for installtion: 18mm
The Procar 16A rated Panel Mounted DIN Socket and Cap, has a sleek and compact design that fits flush with the socket, providing a neat and tidy appearance and is designed to protect the DIN socket from dirt, dust, and other contaminants when it is not in use.
Specifications
| PRODUCT CODE: | C0214 |
|---|---|
| Manufacturer's product code: | 57607003 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524104756 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm Flat terminals with hexagonal fastening nut |
| PORT FOR INSTALLATION mm: | 18mm |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 16 |
| Internal Fuse: | N/A |
| Product Notes: | DIN EN ISO 4165 & TUV certified, protective dust and splash proof cap |
| Dimensions L x W x H - mm: | 16 X 16 X 30 |
| Installation Depth in MM: | 30 |
| Product Net KG: | 0.040 |
| Warranty - years: | 2 |
| weight: | 0.040 |
What's in the box
- 1 unit
