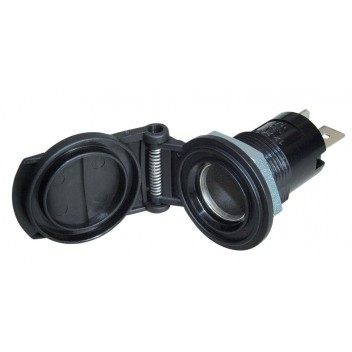

ProCar 67607100 W'proof 16A DIN Socket W. Cap (Loose min 50)
C0214L
Description
The Procar 16A rated Panel Mounted DIN Socket and Cap, has a sleek and compact design that fits flush with the socket, providing a neat and tidy appearance and is designed to protect the DIN socket from dirt, dust, and other contaminants when it is not in use.
THIS ITEM IS EXACTLY THE SAME AS C0214
PLEASE NOTE THIS ITEM COMES UNPACKAGED AND WITHOUT INSTRUCTIONS, THERE IS A MINIMUM ORDER QUANTITY OF 50 UNITS FOR THIS PRODUCT
Specifications
| PRODUCT CODE: | C0214L |
|---|---|
| Manufacturer's product code: | 67607100 |
| MANUFACTURER: | Pro Car Gmbh |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm Flat terminals with hexagonal fastening nut |
| PORT FOR INSTALLATION mm: | 18mm |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 16 |
| Internal Fuse: | N/A |
| Product Notes: | DIN EN ISO 4165 & TUV certified, protective dust and splash proof cap, Supplied Loose, Minimum order quantity of 50 applies to this product |
| Dimensions L x W x H - mm: | 16 X 16 X 30 |
| Installation Depth in MM: | 30 |
| Product Net KG: | 0.030 |
| Warranty - years: | 2 |
| weight: | 0.035 |
What's in the box
- 1 unit, Loose
