ProCar 68140860 20A Push-in Socket (Lighter Type) 12V/24V
C0217
Description

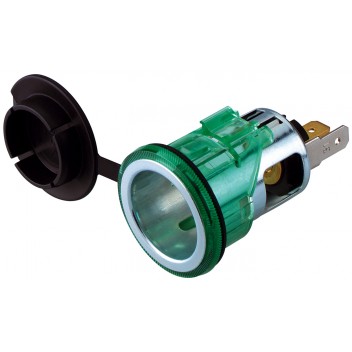

Lighter-type socket designed for panel-mounting and with a dust & splash-proof cap. The socket uses a push-fit mounting method.
Required port for installation 27.8mm
Specifications
| PRODUCT CODE: | C0217 |
|---|---|
| Manufacturer's product code: | 68140860 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524100307 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm flat terminals |
| PORT FOR INSTALLATION mm: | 27.8mm |
| Input power connection: | Wired |
| Output power connection: | Lighter socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 20A using 2.5mm2 cable or 16A using 1.5mm2 cable |
| Internal Fuse: | N/A |
| Product Notes: | Green clamp sleeve, fastened by slamp sleeve |
| Dimensions L x W x H - mm: | 30 X 30 X 55 |
| Installation Depth in MM: | 55 |
| Product Net KG: | 0.040 |
| Warranty - years: | 2 |
| weight: | 0.040 |
What's in the box
- 1 unit
