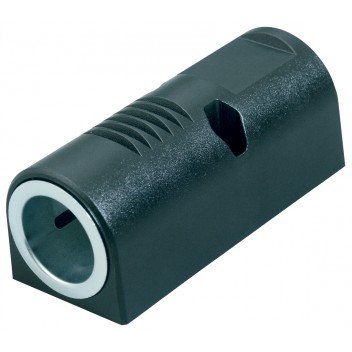

ProCar 67614000 20A S/M Lighter-type Socket
C0232
Description
Surface mounted power socket suitable for 12-24V with a current carrying capacity based on the following cable. Max. load 20 A based on a supply cable cross-section of 2.5 mm2 , max. load 16 A based on a supply cable cross-section of 1.5 mm2 .
Fitting suitable for universal plugs. With 6.3 mm flat plug connection. Fastening with enclosed screws
Specifications
| PRODUCT CODE: | C0232 |
|---|---|
| Manufacturer's product code: | 67614000 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524101212 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm flat terminals |
| PORT FOR INSTALLATION mm: | N/A |
| Input power connection: | Wired |
| Output power connection: | Lighter socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 20A using 2.5mm2 cable or 16A using 1.5mm2 cable |
| Internal Fuse: | N/A |
| Product Notes: | supplied in blister pack |
| Dimensions L x W x H - mm: | L x W x H: 85 x 35 x 33 |
| Installation Depth in MM: | N/A |
| Product Net KG: | 0.120 |
| Warranty - years: | 2 |
| weight: | 0.120 |
What's in the box
- 1 unit
