ProCar 67604000 20A S.M. Lghtr-type sckt (Loose min. ord 50)
C0232L
Description

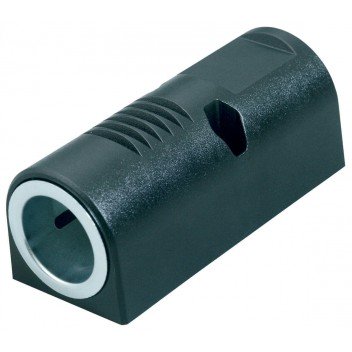

Surface mounted power socket suitable for 12-24V with a current carrying capacity based on the following cable. Max. load 20 A based on a supply cable cross-section of 2.5 mm2 , max. load 16 A based on a supply cable cross-section of 1.5 mm2 .
Fitting suitable for universal plugs. With 6.3 mm flat plug connection. Fastening with enclosed screws
PLEASE NOTE THIS ITEM COMES UNPACKAGED AND WITHOUT INSTRUCTIONS, THERE IS A MINIMUM ORDER QUANTITY OF 50 UNITS FOR THIS PRODUCT
Specifications
PRODUCT CODE: | C0232L |
---|---|
Manufacturer's product code: | 67604000 |
MANUFACTURER: | Pro Car Gmbh |
Rated Voltage DC Volts: | 12V / 24V |
Wire connection method in plug / socket: | 6.3mm flat terminals |
PORT FOR INSTALLATION mm: | N/A |
Input power connection: | Wired |
Output power connection: | Lighter socket |
Approximate cable length metres: | N/A |
Current rating Amps: | 20A using 2.5mm2 cable or 16A using 1.5mm2 cable |
Internal Fuse: | N/A |
Product Notes: | Supplied loose no packaging, Minimum order quantity of 50 applies to this product |
Dimensions L x W x H - mm: | L x W x H: 85 x 35 x 33 |
Installation Depth in MM: | N/A |
Product Net KG: | 0.070 |
Warranty - years: | 2 |
weight: | 0.070 |
What's in the box
- 1 unit
Questions
Customer Questions
Hi could you tell me if this takes a standard cigarette plug about 20mm in diameter cheers ian
Answered by Andrew Harris at RoadPro on July 12th, 2020That's absolutely what it does Ian. The internal diameter is 21mm. Actually, there's no such thing as a standard cigarette plug. Strange but true!
