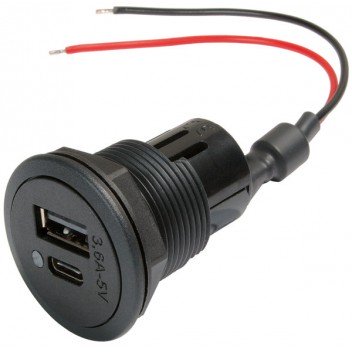

ProCar 67341500 Power Double USB-C/A LED Socket
C0263A
Description
12-24 V DC, output 5 V DC, 3.6 A with integrated power voltage converter and blue LED. For charging and operating electronic devices, that can be charged via 5 V USB.
- 1 x USB A + 1 x USB C
- Mounting hole Ø 28 mm, with mounting plate Ø 36 mm.
- Fastening with hexagon nut (and enclosed screws). Panel thickness 2-16 mm.
- Input 8-34 V DC, E1 approval, current consumption ≤ 1 mA.
- Overload protection, overtemperature protection, reverse polarity protection, short-circuit protection, overvoltage protection at short voltage peaks.
- Cable connection pre-assembled, approx. 15 cm, 0.5 mm2
Specifications
| PRODUCT CODE: | C0263A |
|---|---|
| Manufacturer's product code: | 67341500 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524105203 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | Positive and negative cables for soldering |
| PORT FOR INSTALLATION mm: | 28mm |
| Input power connection: | wired |
| Output power connection: | USB port |
| Approximate cable length metres: | 15cm |
| Current rating Amps: | 3.6 |
| Internal Fuse: | n/a |
| Product Notes: | 5v Output |
| Installation Depth in MM: | Panel thickness: any thickness , Install dimensions 36 mm +/- 0.1 mm, |
| Product Net KG: | 0.045 |
| Warranty - years: | 2 |
| weight: | 0.050 |
What's in the box
- 1 unit in Blister pack
