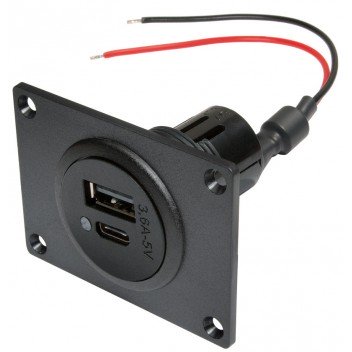

ProCar 67342500 Pwr Double USB-C/A Socket w. mounting plate
C0263
Description
This product is the same as C0263a, however also includes a blanking plate.
Dimensions mounting plate L x W x H: 60 x 45 x 2.2 mm.
Specifications
| PRODUCT CODE: | C0263 |
|---|---|
| Manufacturer's product code: | 67342500 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524105210 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | Positive and negative cables for soldering |
| PORT FOR INSTALLATION mm: | 28mm |
| Input power connection: | wired |
| Output power connection: | USB port |
| Approximate cable length metres: | 15cm |
| Current rating Amps: | 3.6 |
| Internal Fuse: | n/a |
| Product Notes: | 5v Output |
| Installation Depth in MM: | Panel thickness: any thickness , Install dimensions 36 mm +/- 0.1 mm, |
| Product Net KG: | 0.045 |
| Warranty - years: | 2 |
| weight: | 0.050 |
What's in the box
- 1 unit
