Description

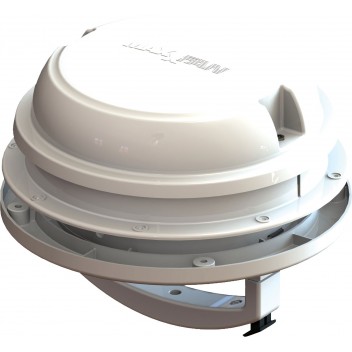

The MaxxFan Dome Plus with LED Lighting is a 12-volt exhaust fan that is perfect for motorhomes, campervans, and caravans. It has a 6-inch diameter and can be installed in the roof or sidewall. The fan has a locking lid with a single-hand push button operation, and removable screens make cleaning a breeze. It also has a built-in LED light that can be turned on or off with a switch.
The MaxxFan Dome Plus with LED Lighting is a great way to improve ventilation and airflow in your vehicle.
Specifications
| PRODUCT CODE: | J3308 |
|---|---|
| Manufacturers Part code: | 00-03810W |
| MANUFACTURER: | MaxxAir Solutions |
| Operating voltage - V: | 12 |
| Rain sensor: | NO |
| Manual controls: | SINGLE PUSH BUTTON OPERATION |
| Dimensions of roof unit (L x W x H) - mm : | 260 x 90 |
| Unit Dimensions (W x H x D mm) Boxed: | 270 x 280 x 280 |
| Required roof opening - mm: | requires 6 1/4 inch opening |
| suitable for roofs with thickness - mm: | 1 - 6 inch |
| Start-up current (max.) - Amps: | 2a |
| Remote control supplied: | NO |
| Refrigerant: | NO |
| Other features: | For sidewall applications, the included fan guard acts as a rain shield and protects your interior from weather and debris. Additionally, the fan guard provides protection from accidental contact with the blades, Cool white LED lighting |
| Product Net KG: | 1.910 |
| Warranty - years: | 1 |
| weight: | 2.200 |
What's in the box
- 1 x unit
- 1 x set of fitting screws
- 1 x fan guard
- 1 x set of instructions
