Power Service Gold 40-M Triple Charger
C8202
Description

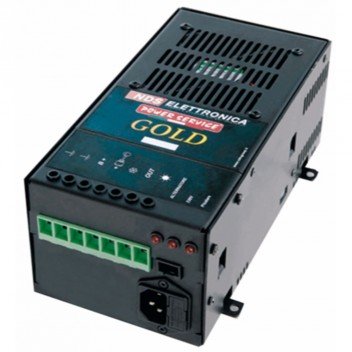

The NDS/ Dometic Power Service Gold 40-M is an all-in-one triple charger for leisure batteries. With its combination of a 40A battery-to-battery (DC-DC) charger, a 20A mains-powered charger and a 250W PWM solar controller, this compact unit provides charging from a vehicle's alternator when the engine is running, from AC mains when hook-up is available and from solar panels when the sun’s out.
Having all three chargers in one box saves space, cabling and installation time when compared with fitting three separate pieces of equipment.
The Power Service Gold-40M optimises the charging of your 12-volt battery from all three sources and can be fitted to vehicles with either standard or Euro 6 'smart' alternators. It can be used with all lead-acid batteries and lithium batteries and has dedicated, selectable charging profiles for each type.
Note:
- Only use this product with solar panels that have an Open-Circuit Voltage (VoC) of 28V or less. Higher voltages may damage the unit and will void the warranty.
- Suitable for 12V nominal voltage systems.
More Information
Specifications
| PRODUCT CODE: | C8202 |
|---|---|
| Manufacturer's product code: | GOLD 40-M |
| MANUFACTURER: | NDS |
| Suitable for use with smart alternators?: | Yes |
| Input Voltage - Volts: | 12 |
| Output voltage - Volts: | 12 |
| Recommended minimum output of alternator- Amps: | 110 |
| Max. charging current - Amps: | 40 |
| Input: | Alternator, solar panel and 230v mains |
| Input from alternator - V: | 11.8 - 15 |
| Input from solar panel - V: | 12 / 28v |
| Conventional alternator cut-in: | AUTOMATIC |
| Max. Charging Current from Alternator: | 40 |
| Max. charging current from solar panel - Amps: | 20 |
| Max. charging current from 230V supply - Amps: | 20 |
| Charging characteristic: | 5 stage with desulphation |
| Suitable for battery size - Ah: | 85 - 400 |
| Suitable for battery types: | All types of lead-acid battery inc. wet, AGM, Gel and Lithium LifePo4 |
| Max. power input from solar panel - Watts: | 250 |
| Dimensions (L x W x H) - mm: | 228 x 135 x 98 |
| Product Net KG: | 1.70 |
| Warranty - years: | 2 |
| weight: | 1.700 |
What's in the box
- 1 x unit
- 1 x User Manual
- 1 x pack of misc fuses
- 1 x Mains Euro 2 pin Lead
