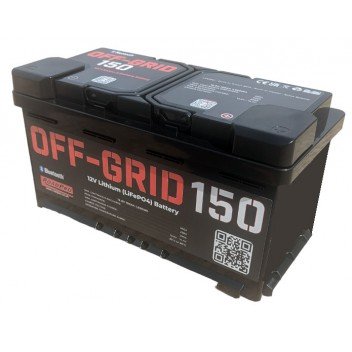

OFF-GRID 150: 150Ah/200A 12V Low-case Lithium Battery
C9494
Description
Our OFF-GRID 150 batteries conform to our own specifications and, in our opinion, are amongst the best 12V lithium leisure batteries available. Special features make them ideal for use in motorhomes, caravans, campervans and boats as well as emergency and other specialist vehicles. With the same dimensions as a typical 110Ah lead-acid battery, one or even two of these 150Ah models will fit under the front seat of many motorhomes, each providing around two and a half times the usable energy of a typical lead-acid leisure battery. The high continuous discharge rate of 200 Amps means that it can be safely used with many 240V appliances running from an inverter, including induction hobs, microwave ovens and even air-conditioning. The maximum charge rate of 200 Amps allows it to be rapidly recharged as well.
High-quality cells and a sophisticated battery management system (BMS) ensure that the OFF-GRID 150 provides electrical power safely, efficiently and reliably. Active balancing looks after the cells and, when two or more batteries are connected in parallel, the BMS units in each battery recognise this and show the combined batteries as one. This makes it very easy to monitor the batteries' performance.
The OFF-GRID 150 has a simple-to-use app for both Android and iPhone and built-in heaters to enable charging even in low temperatures.
With a cycle life of up to 8,000 full charge/discharge cycles (depending on how the battery is used), for most people this will probably be the last leisure battery they ever need to buy.
More Information
Specifications
PRODUCT CODE: | C9494 |
---|---|
Manufacturer's product code: | LFP-150 |
MANUFACTURER: | Roadpro Ltd |
Nominal Voltage: | 12v |
Ah capacity at 20 hr rate: | 150 |
Ah capacity: | 150 |
Maximum Parallel Battery Connection: | 12 |
Maximum Series Battery Connection: | 4 |
Battery case construction: | ABS plastic |
Battery type: | LiFePO4 |
Built-in Heater: | Yes |
Certification: | Transportation class - UN3480, Class 9, Battery Cert CE, UN38.3, RoHS, BMS Cert IEC62133 |
Dimensions (L x W x H) - mm: | 355 x 175 x 188 |
Terminal type: | SAE High performance Automotive Posts with M8 Threaded bolt |
Recommended maximum charging current - Amps: | 200a |
Max charging current - Volts: | 14.4 |
Recommended maximum continuous discharging current - Amps: | 200 |
Max short period discharging current - Amps: | 200 |
Maximum recommended inverter - Watts: | 2000w max on a single battery |
Operating temperatures charging / discharging: | -20 degrees to +50 degrees (Charge), -20 degrees to +60 degrees (Discharge) |
Over / under voltage protection: | Yes, see specification sheet for more information |
Over current protection: | Yes, see specification sheet for more information |
Short circuit protection: | Yes, see specification sheet for more information |
Monitor / Display: | Bluetooth enabled |
Self-discharge rate: | Dependent on external temperature |
Expected Cycle Life @ 50% Depth of Discharge: | 6500 |
Expected Cycle Life @ 80% Depth of Discharge: | 3000 |
Notes: | During long term storage battery should be charged a minimum of one every 6 months or as soon as voltage is at 12.8v or below. |
Product Net KG: | 16.0 |
weight: | 17.000 |
What's in the box
- 1 x Battery
