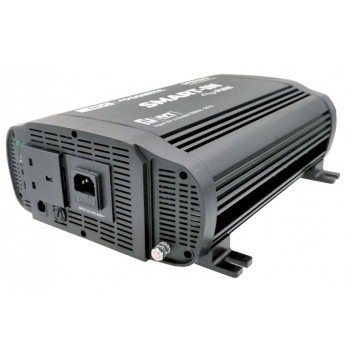

NDS 1000W 12V P/S Inverter with Priority Switch: N-Bus
C7686A
Description
SMART-IN PURE with IVT function is a range of inverters with an integrated priority system (Priority Switch type). This special IVT function, using the two 230V input and output sockets, allows management of the voltage coming from the inverter connected to the battery and from the external grid. This special IVT function, using the two 230V input and output sockets, allows management of the voltage coming from the inverter connected to the battery and from the external main power supply.
ADDITIONAL FEATURES:
- Priority function
- Relay changeover time from inverter to 230VAC external mains = 20 ms
- Relay changeover time from 230VAC to external mains = 100 ms
SMART-IN: 12v 220v pure wave Inverter that stands out for its construction quality and design. Designed to provide high performance, maximum safety, reliability and above all quiet operation, which is important for those installing the inverter inside the cabin. Thanks to the adoption of some special engineering solutions, SMART-IN inverters are also suitable for professional use.
- Isolated input and output, to prevent any anomaly in the equipment connected to the output from damaging the input or vice versa, allowing a high degree of safety.
- Professional connectors which, are integrated directly into the board, allowing a substantial reduction in the voltage drop on the connection between the device and the battery, improving performance and, for the same power absorbed by a 230V consumer (e.g. a TV)
For additoinal information on this product please click here
Specifications
| PRODUCT CODE: | C7686A |
|---|---|
| Manufacturer's product code: | SPB1000I-12EN |
| MANUFACTURER: | DOMETIC NDS |
| Nominal operating Voltage - Volts: | 12 |
| Output voltage - Volts: | 230 |
| Input connection: | 8mm connection (Hard Wired) |
| Output connection: | Single UK socket |
| USB socket: | Yes - 2.1A |
| Output wave form: | Pure sine wave |
| Continuous output - Watts: | 1000 |
| Peak output (for a few seconds) - Watts: | 3000 |
| Efficiency - %: | 93 |
| Remote control facility: | Yes - C7685A |
| Protection: | Soft start, Protection against overload and short circuit, Low battery alarm,Protection against polarity inversion and overtemperature |
| Priority switch function: | Yes |
| Certification: | e marked |
| Dimensions (L x W x H) - mm: | 262.4 x 270 x 121 |
| Note: | 80cm of negative and positive cable |
| Product Net KG: | 4.40 |
| Warranty - years: | 2 |
| weight: | 4.400 |
What's in the box
- 1 x inverter
- spare replacement fuse
- 1 x 16mm2 80cm positive cable
- 1 x 16mm2 80cm negative cable
- 1 x user manual
