Description

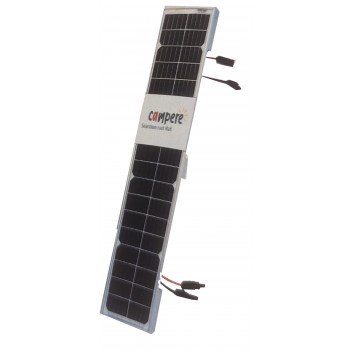

This is the 25W panel for the Campere solar power system. There are many advantages to the system. For example: if a solar module is partially shaded in a series-connected installation, this reduces the electricity yield of all other modules. The parallel connection of the Campere solar modules SPL25 and SPL105 prevents this effect. Since the voltage in parallel connection is constant, only the performance of the partially shaded modules is limited. All other modules continue to deliver full performance.
- Dimensions: 790 x 190 x 30
- Weight: 1.45 Kg
- Nominal voltage: 12.0V
- Open circuit voltage: 24.0V
- Max power: 25W
- Current: 1.25A
Specifications
| PRODUCT CODE: | C5102 |
|---|---|
| Manufacturer's product code: | SPL25 |
| MANUFACTURER: | CAMPERE / LILIE |
| Cell type: | Monocrystaline |
| Open circuit voltage - V : | 24v |
| Maximum power output - Watts: | 25w |
| Current at peak power - Amps: | 1.25 |
| Voltage at peak power - Volts: | 20.3 |
| Dimensions L x W x H - mm: | 790 x 190 x 30 |
| Regulator included: | NO |
| Mounting method: | Built in brackets |
| OK to walk on: | NO |
| Certification: | IEC 61215 Safety Class 2, IEC 61730-1A, IEC 61730-2, CE 2006/95/EC |
| Product Net KG: | 6.9 |
| Warranty - years: | 3 |
| weight: | 1.900 |
What's in the box
- 1 x Panel
