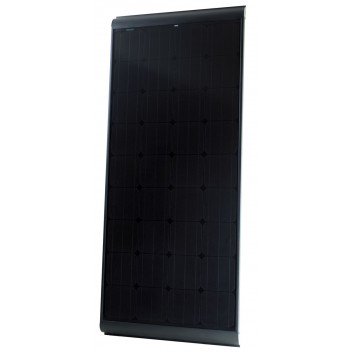

NDS 230W BlackSolar "Aero" Panel
C5634
Description
The mounting bars of this 230W NDS BLACK solar panel are the same type as the NDS AERO range. But, the frame, structure, cells and connective strings on the panel are all completely black, so they look great!
Looks aren't everything though and these BLACK panels perform beautifully too. The cell design and construction enable NDS BLACK panels to capture more solar energy, especially when the sun is at an angle, not directly overhead. At times such as sunrise and sunset, as well as in winter, the power output from a BLACK panel is markedly better when compared to most standard panels.
This solar panel is easy to install and use. It features pre-drilled holes for mounting, making it easy to install on various surfaces. It also comes with MC4 connectors.
Specifications
| PRODUCT CODE: | C5634 |
|---|---|
| Manufacturer's product code: | BS230WP.2 |
| MANUFACTURER: | nds |
| Nominal output - DC Volts: | 12 |
| Cell type: | Monocrystalline |
| Open circuit voltage - V : | 27.05 |
| Maximum power output - Watts: | 230 |
| Current at peak power - Amps: | 10.46 |
| Voltage at peak power - Volts: | 21.99 |
| Dimensions L x W x H - mm: | 1885 X 720 X 60 |
| Regulator included: | No |
| Cable included - Metres: | 4M - twin cable |
| Mounting method: | Integrated mounting brackets |
| OK to walk on: | No |
| Certification: | IEC61215, IEC61730 safety standards compliant and ISO9001/ISO14000 Certification |
| Note: | Monocrystalline silicon cells protected by a Tedlar Sheet and highly transparent tempered and textured glass |
| Product Net KG: | 17.5 |
| Warranty - years: | 2 |
| weight: | 20.000 |
What's in the box
- 1 x 230W solar panel with 6M cable attached
