C8507A

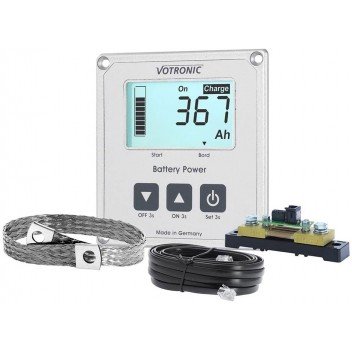

This 100 Amp VOTRONIC LCD Battery Computer S calculates the exact charging state of both the leisure and starter batteries and displays the charging state like a "fuel gauge for the battery". In contrast to simple ampere-hour meters, the residual capacity will be determined in Ampere-hours (Ah) or the residual charge in % by means of programmed battery characteristics and will be displayed as state of charge. Apart from this, the LCD Battery Computer S provides the display of the battery voltage (V) of a second battery (starter battery). The smart-shunt, which is provided with the unit, is extraordinarily robust, very accurate and shows extreme overload capacity (refer to "Technical Data").

Votronic Battery Computers come in 100A, 200A and 400A versions. This is the 100A model.

The computer comes complete with a "Smart Shunt" 5M data cable and an earth strap

product features

• fuel gauge for the battery
• Bright, white illuminated display
• Battery charge level indicator adjustable for lead-acid, gel, AGM and LiFePO4 batteries
• Remaining capacity in Ah and %
• remaining running time in hours
• charging / discharging currents in A
• Voltage for 2nd battery in V
• Programmable switching output with main switch function up to 300 A
• For all 12 V and 24 V batteries

Smart Shunt

The installation of the LCD Battery Computer S is extremely simple: The precision measuring resistor (shunt) included in the scope of delivery (set) but also available separately is connected directly to the negative pole of the on-board battery and simply connected to the display via a plug-in cable.

DISPLAY

Model No. LCD Battery Computer S

Article No. 1260

This item is supplied with a 100a Shunt

Model No. 100 A

Article No.5773

KIT Article No. 1263

For more information on this product click here
