C85094

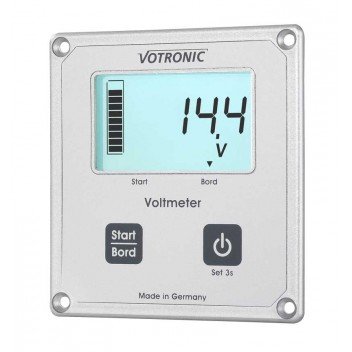

LCD Voltmeter S

The precise measurement of the on-board voltage provides safety, as the battery voltage can provide initial information about the battery's charge level. Harmful deep discharges of the on-board battery are also immediately detected and can be remedied by charging it immediately. Abnormally strong voltage drops when consumers are in operation usually indicate an aged battery. Excessive charging by unregulated chargers or other unsuitable charging sources can be detected and thus avoided.

The LCD Voltmeter S can optionally display the voltage of the on-board battery and the starter battery. The voltages are shown as precise numerical values. The additional bar display works in the range of 10.5 to 15 volts and thus shows the most interesting range of the battery voltage from deep discharge to the maximum charging voltage clearly and at a glance. When installing the device, this function is set once to 12V or 24V operation. With 24V operation, the range then corresponds to 21.0 to 30.0 volts. Mixed operation of, for example, 24V starter circuit and 12V supply circuit is also possible, as this setting is made separately for the starter and on-board battery. The connection is made using screw terminals on the back of the device. Matching the VOTRONIC module system, the LCD voltmeter S is aligned with the other display modules both optically and mechanically (uniform height 85 mm) and the low installation depth of only 22 mm allows installation in almost any place. The display is backlit in white if required (switchable) and is very easy to read even from greater distances and in all lighting conditions.

Product features

• Large, clear display
• Bright, white illuminated display
• voltage display of the auxiliary battery
• starter battery voltage indicator
• bar display (10.5 V to 15 V)

Model Ref. measuring and display devices

Article No. 1256
