Description
The RoadPro 350A Battery Computer is an accurate, easy-to-use and reliable monitor suitable for all types of lead-acid batteries as well as lithium. It can be used in situations where the maximum current is no more than 350 Amps.

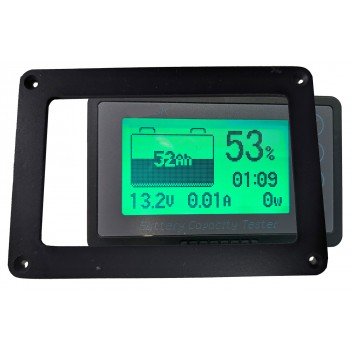

Using the supplied shunt, it monitors the current (in Amps) going into and coming out of the battery. The bright, clear, easy-to-read display also shows voltage at the leisure battery and remaining capacity in both Amp hours and as a percentage.
The monitor measures approx. 99 x 61 x 18. The screen is back-illuminated and is simple to install and use. It comes complete with shunt and 6M data cable.
C8463 comes with a mounting frame for neat installation. If you don't need it, look at C8462.
Specifications
| PRODUCT CODE: | C8463 |
|---|---|
| MANUFACTURER: | ROADPRO |
| Manufacturer's product code: | RPCOMPUTER |
| Rated Voltage DC Volts: | 10.0v - 120.0v |
| Dimensions (L x H x D) - mm: | Display screen dimensions 100 x 60 x 20 |
| Current consumption: | 10 -15 mA in operation, 1-2mA in standby |
| Shunt size supplied (Amp): | 350A |
| Load current - Amps: | 350A |
| Charge current - Amps: | 350A |
| Type of display: | LCD interface with Backlight |
| Product Net KG: | 0.650 |
| Warranty period - Years: | 1 |
| weight: | 0.700 |
What's in the box
- 1 x Fitting kit
- 1 x connection cable
- 1 x 350A shunt
- 1 x display screen
