Description
The Energy Meter from Dometic/NDS is a neat, simple and efficient way of keeping an eye on the state of charge of any lithium battery. Using a separate shunt, the system detects and displays voltage and current input and output from one or more 12v service batteries (connected in parallel with each other) – with up to 150Ah capacity.

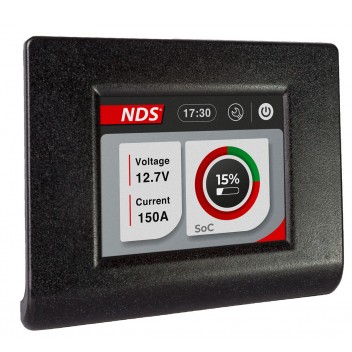

The compact touch screen display allows you to easily adjust the settings of the connected batteries and to check the state of charge (SoC) and consumption in real time.
Specifications
| PRODUCT CODE: | C8464 |
|---|---|
| MANUFACTURER: | EM12-150 |
| Manufacturer's product code: | DOMETIC NDS |
| Barcode: | 8058093763182 |
| Rated Voltage DC Volts: | 12V |
| Dimensions (L x H x D) - mm: | Display dimensions 100mm x 80mm x 11mm Energy Meter Blackbox Dimensions 125mm x 123mm x 47mm |
| Battery capacities - Ah: | 600ah |
| Current consumption: | Blackbox 3mA in operation 1mA when in standby, Display 73mA at maximum Brightness, 33mA when screen off |
| Type of display: | LCD TFT2.83" 262k Colour touch screen |
| Product Net KG: | 0.250 |
| Warranty period - Years: | 2 |
What's in the box
- 1 x main module, 1 x wireless display
