C85041

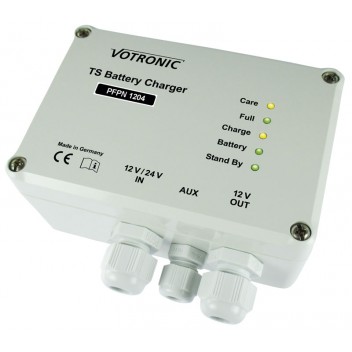

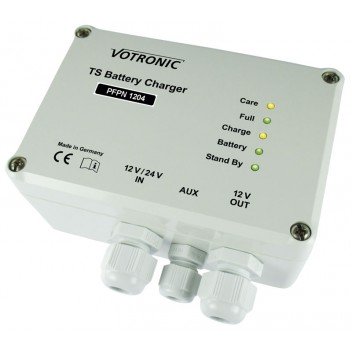

TS Battery Charger PFPN 1204

On-board charging converter

Fully automatic DC charger in accordance with the current DIN 14679:2024-02 for charge maintenance and recharging from the 12 V or 24 V vehicle electrical system (switchable) for the 12 V starter battery of portable pumps (TS/PFPN), mobile power generators and units. The adjustable charging current of 1 A to 4 A is designed for battery capacities of 6 to 100 Ah. Charging begins automatically as soon as the vehicle's on-board battery is charged while driving or when connected to the mains. 4 adjustable, 6-stage IU1oU2oU3 charging characteristics for acid, gel and AGM1/AGM2 starter battery types as well as modern lithium LiFePO4 batteries ensure full and monitoring-free main, maintenance or gentle storage charging.

product features

• 6-stage charging characteristics for acid, gel and AGM batteries as well as lithium LiFePO4 batteries
• Fully automatic, monitoring-free charging while driving or when connected to the mains
• Suitable for very different usage cycles
• No "draining" of the battery
• Battery capacity 6 Ah…100 Ah
• input 12 V or 24 V
• Galvanic isolation
• Meets the latest DIN 14679:2024-02 of the FNFW

Model No. TS-Battery Charger PFPN 1204

Article No. 0695

For more information on this product click here
