C85034

Mobile mains chargers – VAC-F II series

Fully automatic built-in chargers in protection class II (mains connection 2-core, without protective
conductor). DIN 14679: 2008-03 Fire Protection for fire-fighting and special purpose vehicles.

Distinguished by their compact design, low weight (high-frequency switching power
supply, Switch Mode Technology), as well as full charging capacity - even in the event of large fluctuations in the power
supply (Undervoltage/overvoltage, sine waveform, frequency).
The intelligent microprocessor charging control with charging programs "IU1oU2oU3" (constant current - constant voltage)
and dynamic charging time calculation ensures automatic, quick and gentle full charging, as well as subsequent 100 %
trickle charge of the connected batteries from any charging state. At the same time, a simultaneous supply of 12 V (24 V)
consumer loads, which are connected in parallel, are ensured or charging of very large batteries (depending on the case of
application).

This unit is a 12V charger, capable of providing up to 30a charge

Product Features

• Battery type adjustable: Gel, AGM, Acid
• Automatic battery regeneration
• power supply function (battery change)
• Manual charging start when the battery is deeply discharged
• remote control/display connection
• Charging current distributor, switchable start
• switching output engine start lock
• temperature compensation
• Temperature sensor(s) 825 included in delivery: 1
• electronics protected from moisture
• protection class II (DIN 14679)
• Dimensions (L x W x H): 228 x 139 x 74 mm

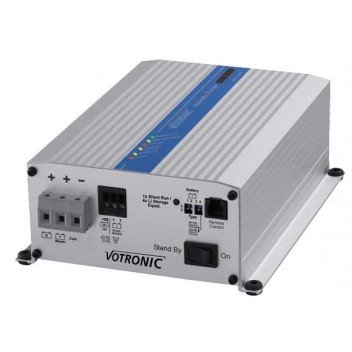

Model No. VAC 1230 F 3A II

Article No. 0477
