C85024

Mobile mains chargers – VAC series

Especially in rescue and emergency vehicles, the reliability of the batteries installed in the vehicle is crucial for the operational readiness of the vehicle. This is especially true when many continuous consumers are placing a heavy load on the batteries, there is no time to recharge them due to frequent use, or the charger is not adequately matched to the batteries. The VAC series was created in collaboration with vehicle and leading battery manufacturers to meet the special requirements of emergency vehicles

This unit is for use with 12v Battery systems, providing up to 60a B2B charging current and a 4a Auxilary charging output

Product features

• Battery type adjustable: Gel, AGM, Acid, LiFePO4* (except 24V)
• Automatic battery regeneration / Li Auto Wake Up
• power supply function (battery change)
• Manual lead equalization function
• remote control/display connection
• Battery capacity (size) adjustable
• Charging current distributor, switchable start
• AC power limit function
• Silent Run function
• switching output engine start lock
• Lead temperature compensation / LiFePO4 protection
• Temperature sensor(s) 825 included
• voltage sensor
• electronics protected from moisture
• Dimensions (L x W x H): 330x 139 x 74 mm

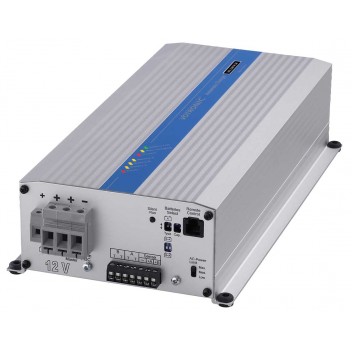

Model No. VAC 1260 M 3A

Article No. 0430
