Camos Jewel PLUS V1 Camera with cable & 5" Dash Monitor Kit
D4861E
Description
This product is designed to provide a clear view of the surroundings of your vehicle, improving safety and convenience while driving.

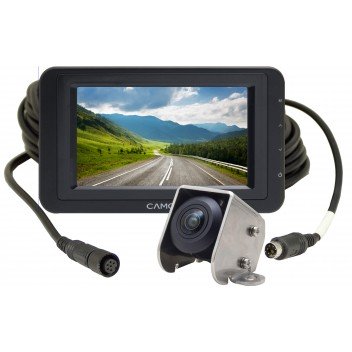

The Camos Jewel Plus V1 Camera is a compact and waterproof camera that is mounted on the rear of the vehicle, providing a wide-angle view of the area behind the vehicle. The camera is equipped with a high-resolution CMOS sensor and infrared night vision, ensuring clear and detailed images even in low-light conditions. The camera comes with a 13m cable, allowing for easy installation on a variety of vehicle sizes.
The system also includes a 5" dash monitor, which displays the live feed from the camera in real-time. The monitor is designed to be easily installed on the dashboard of the vehicle and features a high-resolution display, providing clear and crisp images.
The system comes with all the necessary cables and mounting hardware, making it a plug-and-play solution for any vehicle. The product is suitable for use in a wide range of vehicles, including cars, trucks, and recreational vehicles.
Specifications
PRODUCT CODE: | D4861E |
---|---|
Manufacturers Product code: | MV530 |
MANUFACTURER: | Camos IMC GmbH |
Nominal operating Voltage of system - V: | 12 |
Camera housing: | Alloy / Stainless Steel |
Camera Type: | 1.3 Mega Pixel CMOS |
Viewing Angle (D) Diagonal (H) Horizontal (V) Vertical: | Drive view 80(H) 60 (V) 95 (D) Reverse view 120(H) 90 (V) 140 (D) |
Minimum Illumination: | 0.2Lux (F=2.4) |
I.R. illumination camera: | No |
Heater in camera: | No |
Operating temperature: | -20 degrees C to 60 degrees C |
Camera dimensions (W x D x H) - mm: | 60 x 40 x 45 |
Cable supplied - M: | 13 |
Camera protection rating: | IP68 |
Monitor type: | 5" Digital TFT LCD Monitor |
Screen specification: | 16:9 |
Inputs: | Pre-wired Connection |
Monitor dimensions - mm: | 140 x 83 x 20 |
Product Net KG: | 1.33 |
Warranty - years: | 2 |
weight: | 1.500 |
What's in the box
- 1 x 5" monitor
- 1 x camera
- 1 x extension lead
- 1 x connection lead
