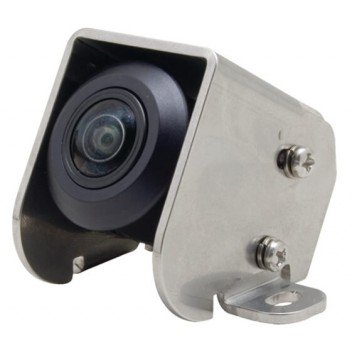

Camos Jewel PLUS V1 Camera Only
D4861B
Description
This camera is identical to our other "Jewel" camera (D4862B) but is in a different housing. This makes it suitable for use in situations where camera D4862B may not fit.
More Information
Specifications
PRODUCT CODE: | D4861B |
---|---|
Manufacturers Product code: | 1305W/O |
MANUFACTURER: | Camos IMC GmbH |
Nominal operating Voltage of system - V: | 12V / 24V |
Camera housing: | Alloy / Stainless Steel |
Camera Type: | 1.3 Mega Pixel CMOS |
Viewing Angle (D) Diagonal (H) Horizontal (V) Vertical: | Drive view 80(H) 60 (V) 95 (D) Reverse view 120(H) 90 (V) 140 (D) |
Minimum Illumination: | 0.2Lux (F=2.4) |
I.R. illumination camera: | No |
Heater in camera: | No |
Operating temperature: | -20 degrees C to 60 degrees C |
Camera dimensions (W x D x H) - mm: | 60 x 40 x 45 |
Camera protection rating: | IP68 |
Product Net KG: | 0.045 |
Warranty - years: | 2 |
weight: | 0.240 |
What's in the box
- 1 x camera
Questions
Customer Questions
Asked by Jac
Sir, I have a 2018 Adria Matrix motorhome which is fitted with a CAMOS CM-430 Monitor and CM-36 Camera. Would either of the Camos Jewel cameras be a direct replacement for the CM-36?
Yes, indeed they would. Any of the Jewel cameras will attach to the cable in your Adria.
- Gary Booth, 31/07/2021
