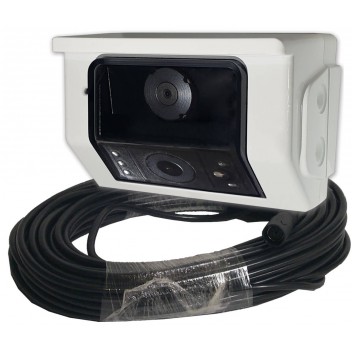

Camos CM-49 "Twin-View" Camera + 18M cable
D4857
Description
Twin-view cameras are ideal for use on motorhomes and other vehicles where vision behind the vehicle is restricted. The camera can help when reversing and also in normal driving when it’s important to know what’s going on behind you.
There are three kinds of twin-view camera:
- Cameras like the Camos Jewel with one lens giving two views.
- Cameras with a single motorised lens that changes position according to whether a forward or reverse gear is selected.
- Cameras with two lenses.
Motorised versions are compact and work well but are expensive and can go wrong. Twin lens models are much more common but, with a few exceptions are ugly, tend to go rusty, have two cables to run and don’t give a very good picture on the screen.
This model from Camos has two lenses but, due to the unique camera design, is as compact as a single lens model. It not only looks great though, it has superb performance and, because it’s made by Camos, is tough and reliable. Infra-red illumination and a microphone are built into the housing.
This kit includes a CM-49 camera and 18M of cable.
More Information
Specifications
PRODUCT CODE: | D4857 |
---|---|
Manufacturers Product code: | CM-49 |
MANUFACTURER: | Camos IMC GmbH |
Nominal operating Voltage of system - V: | 12 |
Camera housing: | Alloy / stainless steel |
Camera Type: | 1/3" (520,000pixel) 960H colour CMOS |
Viewing Angle (D) Diagonal (H) Horizontal (V) Vertical: | Top Lense 47.5(H) 35.5(V) 59(D) Bottom Lense 120(H) 89(V) 160(D) |
Minimum Illumination: | Top Lense 0.5Lux (F=2.8) Bottom Lense .01Lux(F=2.2) |
Camera dimensions (W x D x H) - mm: | 84 x 55 x 51.4 |
Cable supplied - M: | 18 |
Camera protection rating: | IP68 |
Product Net KG: | 1.331 |
Warranty - years: | 2 |
weight: | 1.340 |
What's in the box
- 1 X Camera
- 1 x mounting bracket
- 1 x 18m cable
- 1 x mounting screws
- 1 x instruction booklet
